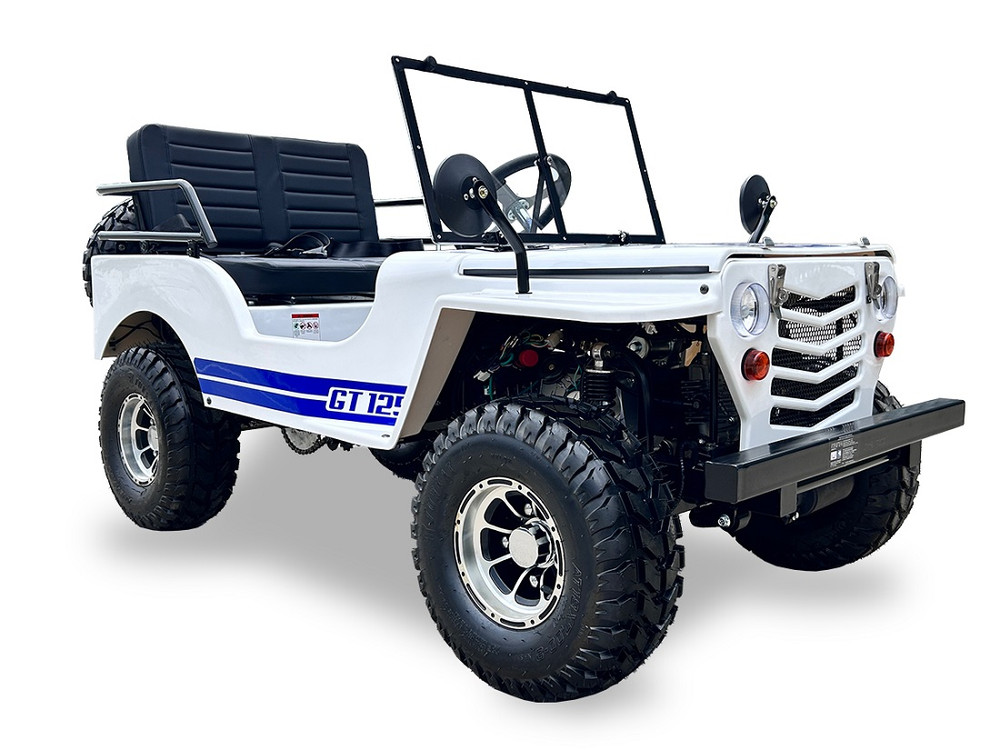

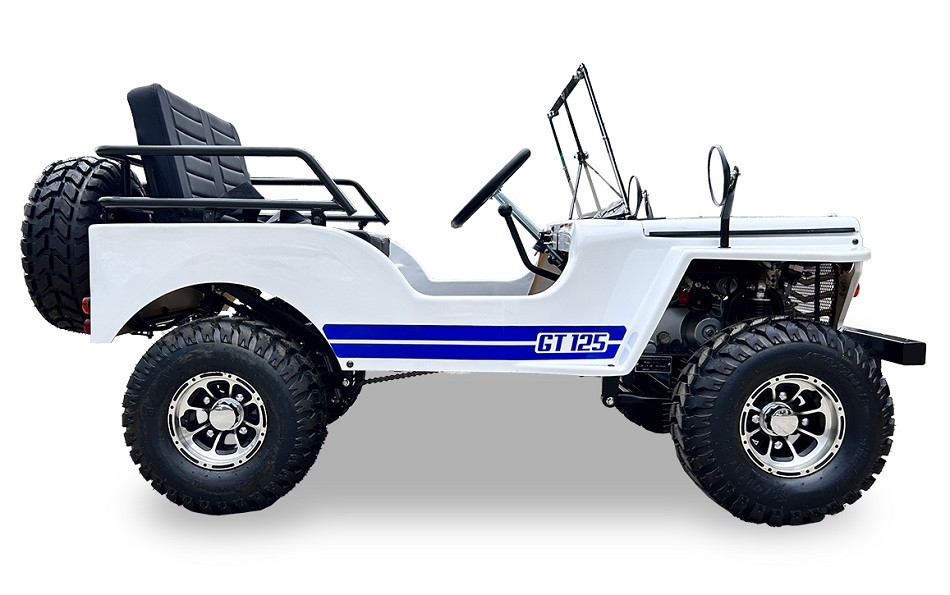

Willys 125CC MINI-JEEP Style 2 SEAT Go Kart
The Mini Jeep/Go Cart offers great value and performance. Your kids will enjoy hours of excitement with their new Willy's Style Go-Kart.
* ALWAYS RIDE WITH A HELMET ON AND PROPER PROTECTIVE GEAR!
This unique machine develops plenty of low down torque allowing for drift, wheel spins and top speeds up to 37mph.
Simplistic strong design, our 123cc Mini Jeep has a Honda clone design overhead cam gas engine, Semi auto transmission, single independant front & rear disk brake, front crash bar, rugged rear suspension, engine protection bar, fully rose jointed steering, chain drive and padded drivers seat.
TXPS is proud to announce our new FULLY ASSEMBLED - READY TO RIDE OPTION! Let the pro's assemble your new ATV, it will arrive to your door built right, run tested and ready to ride. The only thing you do is 1. Hook up the battery, 2. Put gas in it and go riding!
Ready to Ride Option Includes The Following:
1. Check Starter Switch
2. Check Kill Switch
3. Check all lights including Head Lights, Low & High Beams, Rear Tail Lights and Brake Lights
4. Check Rear Safety Wrist Strap Kill Switch* *Not on all Models
5. Mount Tires & Wheels and Check Tire Pressure
6. Check (Engine Oil, Transmission Oil, Brake System Fluid,)
7. Adjust Carburetor for proper idle and run speed
8. Check Transmission, Chain Drive, Brakes and Electrical Connections
9. Check Battery and Check the Charging System
10. Check all Remote Control Features including Engine Kill and Alarm
11. Once completed we Custom Package and Ship your ATV Ready to Ride!
Engine Type Single Cylinder, 4-Stroke
Cooling Air Cooled
Drive System Chain
Piston Displacement 125cc
Bore and Stroke 2.06*2.24
Compression Ratio 9.0：1
Maximum Power 6.3/7500kw/r/min
Maximum Torque 8.8/5500N.m./rpm
Starter electric
Transmission 3-speed with reverse
Length 78.740000
Width 35.430000
Height 29.130000
Seat Height 23.62"
Wheelbase 51.18"
Ground Clearance 9.84"
Front Tires 18x9.5-8
Rear Tires 18x9.5-8
Ignition CDI
Maximum Speed Up to 37mph
Net Weight 330lbs
Gross Weight 363lbs
Battery 12V/4Ah
Frame Steel
Wheel Type Steel
Engine Oil Capacity 0.29gal
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
FEATURES
Single cylinder, air-cooled, 4-stroke engine
Transmission: 3-Speed with reverse
Ignition mode: CDI
Displacement: 123cc
Start mode: electric
Tranmission mode: chain
Min.ground clearance: 9.84"
Max.speed: 37mph
Power source: 12V,4AH
Fuel tank capacity: 7L
Front wheels: 4.80-R8
Rear wheels: 4.80-R8
Brake type(F/R): disc/disc
Product dimensions: Length 78.740000 / Width 35.430000 / Height 29.130000
wheelbase: 51.18"
weight 330lbs
Color: ARMY GREY / ARMY GREEN
|
|
|
|
|
|
|
